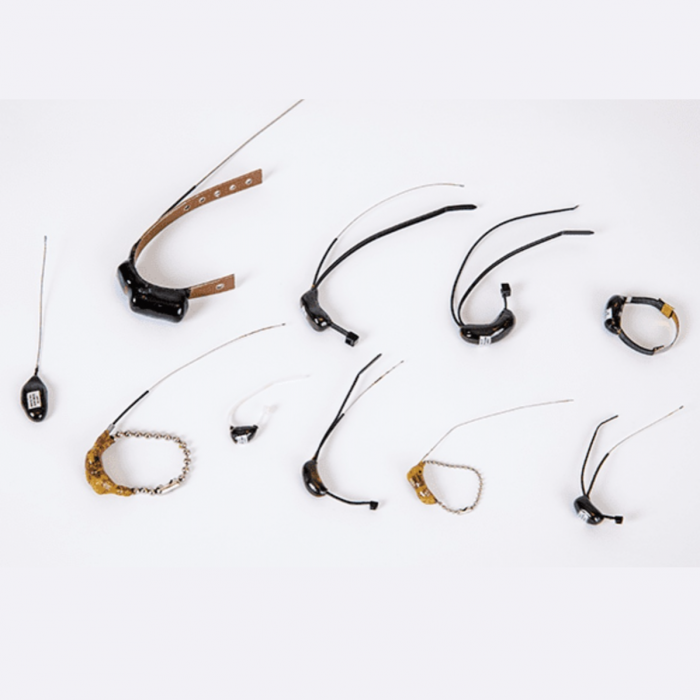

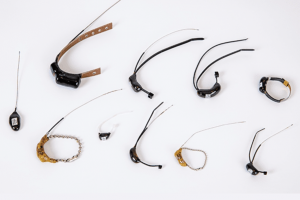

VHF Radio Telemetry (Small Mammal Transmitters)

Traditional radio telemetry using VHF radio transmitters, receivers and Yagi antennas.

Request a Quote

Model

Various

Connectivity

VHF Radio Transmitter

Power

From 7 mAh to 160 mAh. Battery life 14 - 122 days.

Attachment

Collar

Weight

From 0.55g to 20g

Example Species

Including tiny mammals, mice, moles, gophers, squirrels, ferrets, turtles.



Transmitter Number Type Battery Dimensions LxWxH Mounted Weight* Pulse Width Pulse Rate Peak Current Antenna Length Power
Output		 Battery Life Typical Species
      (cm) (grams) (ms) (ppm) (ma) 218 MHz
(cm)		 (dBm) (days)
LPM-2320  2 Stage 3.0 v 160 mah Li 4.1x1.4x1.4 18.5-20.2 19 35 4 22 whip -15 to -20 122 squirrel, mole, turtle
LPM-2320M  2 Stage 3.0 v 160 mah Li 4.1x1.4x1.4 18.5-20.2 19 35 4 22 whip -23 to -26 89 squirrel, mole, turtle
SOM-2380  2 Stage 1.5 v 350 mah 3.5x1.5x1.3 9-11 20 45 2.5 12 whip -25 to -30 294 monkey, ferret
SOM-2380A  2 Stage 1.5 v 350 mah 3.5x1.5x1.3 9-11 20 35-70 2.5 12 whip -25 to -30 267 monkey, ferret
SOM-2190  2 Stage 1.5 v 175 mah     silver oxide 4x1.2x1 5.3-6.6 19 35 2 12 whip -32 to -37 230 squirrel, turtle
SOM-2190A  2 Stage 1.5 v 175 mah 4x1.2x1 5.3-6.6 19 30-55 2 12 whip -32 to -37 209 squirrel, turtle
SOM-2070  2 Stage 1.5 v 70 mah       silver oxide 2.5x.9x.8 2.8-4.4 19 33 1.5 10 whip -33 to -38 121 mouse, gopher, mole, other small animals
SOM-2070A  2 Stage 1.5 v 70 mah      silver oxide 2.5x.9x.8 2.8-4.4 19 25-45 1.5 10 whip -33 to -38 127 mouse, gopher, mole,
SOM-2038  2 Stage 1.5 v 43 mah      silver oxide 3x.7x.8 2.3-2.6 19 32 1.5 10 whip -34 to -39 76 mouse, gopher, mole,
SOM-2028  2 Stage 1.5 v 28 mah      silver oxide 2.7x.9x.8 1.9-2.1 19 32 1.5 10 whip -37 to -42 49 mouse, gopher, mole,
SOM-2018  2 Stage 1.5 v 19 mah       silver oxide 1.8x.9x.6 1.0-1.2 19 33 1.5 10 whip -38 to -43 32 mouse, gopher, mole, other small animals
SOM-2012  2 Stage 1.5 v 11.5 mah   silver oxide 2.5x.7x.4 1.2-1.4 19 32 1.5 10 whip -38 to -43 21 tiny mammals
SOM-2011 Hand-Wired 2 stage 1.5 v 11.5 mah   silver oxide .9x.5x.4 0.6-0.8 19 32 1.5 10 whip -38 to -43 21 tiny mammals
SOM-2007 Hand-Wired 2 stage 1.5 v 7 mah        silver oxide .9x.5x.4 0.55-0.6 19 32 1.5 10 whip -38 to -43 14 tiny mammals

*Mounted weight may vary, depending on materials used.

**Mortality can be added to this unit and will affect days life and add 1.1 grams to weight.

The transmitters shown in the table are meant only as examples of typical applications for multivibrator and hand-made two stage circuitry. The table in no way exhausts the many combinations of transmitter type, weight, peak current, pulse width, pulse rate, battery, and mountings available.

We will custom-build according to the researcher.s specifications.



INFORMATION ABOUT TRANSMITTERS

The transmitters shown in the table are meant only as examples of typical applications for multivibrator and hand-made two stage circuitry. The table in no way exhausts the many combinations of transmitter type, weight, peak current, pulse width, pulse rate, battery, and mountings available.

We will custom-build according to the researcher.s specifications.

The efficient multivibrator-pulsed circuits offer a clear, chirp-free signal that is easy to tune and hear in receiver noise. Multivibrator-pulsed transmitters permit greater flexibility in customizing for optimum output and duty cycle. Because pulse rate and pulse width remain virtually constant throughout the life of the battery, transmitter performance is more predictable than that of older designs.

Surface mounting techniques enhance miniaturization by allowing more chip components to be placed on a smaller, flatter circuit board. The low-profile, rugged components also greatly improve reliability in punishing environments.

To minimize weight and provide packaging strength, transmitters are waterproofed with a tough epoxy resin conformal coating.

The Behavior Circuit can be built into the transmitter (indicated by .B. at the end of the Transmitter Number on reverse) to change the transmitter's pulse rate gradually as the animal's level of activity increases. When an animal is at rest, the behavior circuitry's pulse rate is approximately 30 pulses per minute; the pulse rate increases to 120 pulses or more per minute when the animal is engaged in vigorous activity like running.

The optional Activity Switch (indicated by .A. at the end of the Transmitter Number) varies pulse rate according to the position or movement of the animal.

The Mortality Switch option allows the researcher to detect lack of movement in the animal. This lack of activity triggers a customer-specified increase or decrease in pulse rate. The time delay before indication of mortality can be programmed to be any period from a few seconds to over 12 hours. During normal activity in live animals, the mortality timer circuit is continually reset so that no mortality is indicated. The Mortality Switch is listed with an M at end of the Transmitter Number.

Combined Activity/Mortality features can be built into a transmitter, as indicated by .AM. at the end of the Transmitter Number.

Exact output of the listed transmitters may vary, depending on the transmitter.s antenna length and the frequency range used. Available crystal frequencies include, but are not limited to, 40-50 MHz, 148-155 MHz, 160-165 MHz, and 216-222 MHz.

Each transmitter's signal range will be influenced by tracking conditions. Signal range can be diminished by rugged terrain, natural obstacles such as mountains and timber, dense vegetation, swampsand fog, along with large concrete structures. Best signal range occurs in flat, open country, in line-ofsightconditions. Air-to-ground radio monitoring also enhances the received signal.

Clients should contact our facility by telephone or email. Detailed written specifications and drawings allow us to recommend the best possible combinations of options for a particular study.

Contact us for warranty information. If refurbishing is required so that a transmitter can be used in a different study, we will provide a conversion estimate after inspecting the transmitter.

See Table in Description - All the information presented in that table.
