VHF Radio Telemetry (Radio Receivers)

The world's leading family of receivers which have been considered the industry standard since 1980.

Request a Quote

Model

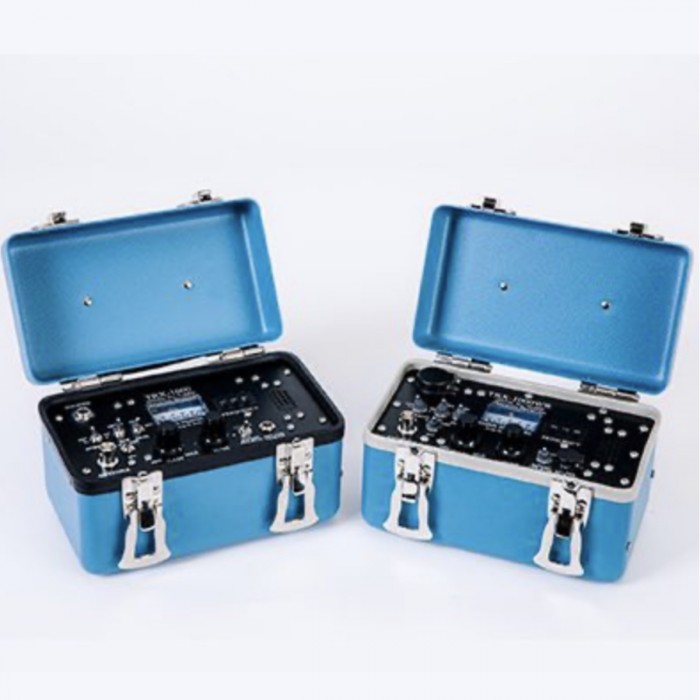

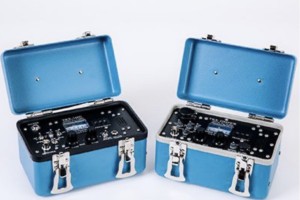

TRX 1000

Connectivity

Not applicable.

Power

12-15 VDC through external DC jack (fused cigarette lighter cord included) or internal Nickel Hydride battery pack..

Attachment

Not applicable.

Weight

2000g

Example Species

For any project.

NEW & IMPROVED TRX-1000-5000 FEATURES:

  • Five differnt models available with 200 to 1000 tag capablity.

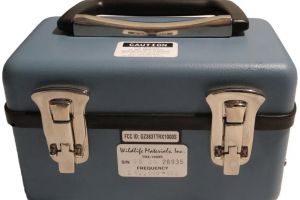

  • Water Resistant Case/Faceplate resists rain and water splashes. (not designed to protect against water immersion).
  • Noise Blanker reduces unwanted sound, now with On/Off Switch. In strong signal areas where transmitters overload circuitry, turn Off to improve dynamic range.
  • Digital Circuitry allows fast, accurate tuning of transmitters. Sharp, noise-reducing audio filters make backgroundnoise drop away.
  • Improved Nickel Hydride battery has double the operational capacity, and almost no memory build-up problems.

STANDARD FEATURES:



  • Locates 200 - 1000 animals; punch in each frequency number on digital display.
  • 1000 KHz frequency range avoids interference with other signals.
  • Attenuator prevents swamping, insures accurate close-in tracking.
  • Signal meter needle deflects to show signal strength.
  • Signal meter is backlit to enhance night tracking.
  • New rechargeable Nickel Hydride batteries give 12 tracking hours on full charge.
  • DC cord allows for external operation from vehicle.s 12 v cigarette lighter.

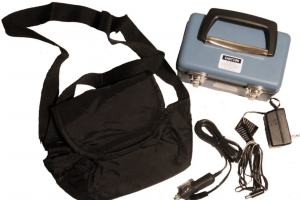

  • Recharge unit, DC power cord and padded nylon carrying case are included.
  • Optional lid-mounted throwaway batteries for use away from current.
  • Five year warranty on parts and labour.

Engineering Specifications:

  • Noise Figure: 1.5 dB or better
  • Input Impedance: 50 ohms +/- 10%
  • Frequency Range: Standard bands are 150-151 MHz, 150.8-151.8 MHz, 151-152 MHz, 160-161MHz, 164-165 MHz, 216-217 MHz, 217-218 MHz, 218-219 MHz, 220-221MHz, Other bands available on request.
  • Frequency Stability: +/- 1 KHz maximum (-20 degrees to +70 degrees C)
  • Image and Spurious Rejection: 60 db or better
  • Minimum Discernible Signal: -150 dBm (.007 microvolts) or better
  • Circuit Design: Modern dual conversion superheterodyne circuit with 8 pole crystal filter plus manually controlled 40 dB Attenuator to prevent overload on strong signals.
  • Manual Gain Range: 90 dB or better.

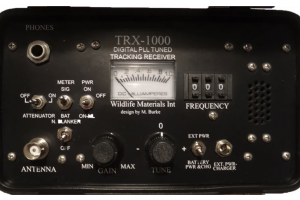

  • Frequency Readout: Digital, direct reading in 1 KHz steps; analog delta tune +/- 2 KHz from center frequency.
  • Tuning: Three-digit, push wheel switches control digital quartz-locked PLL synthesizer.
  • Frequency Resetability: To +/- 500 Hz.
  • Signal Metering: 0-1 scale meter with high dynamic range circuit and backlight for night tracking.
  • Noise Blanking Circuit: Removes impulse and ignition noise to enhance tracking in difficult conditions.
  • Operating Voltage: 12-15 VDC through external DC jack (fused cigarette lighter cord included) or internal Nickel Hydride battery pack.

Warranty

Five year warranty on parts and labour.
